Installation serveur WEB

Mise à jour de Packet Tracer

Télécharger

---

Configuration des serveurs

Mise à jour du système et installation des paquets nécessaires

sudo apt update && sudo apt upgrade -y
sudo apt install zip apache2 php mariadb-server php-mysql libapache2-mod-php

---

Configuration du VirtualHost WordPress

sudoedit /etc/apache2/sites-available/wp.conf

<VirtualHost  *:80>
    ServerName www1.californie.cub.sioplc.fr
    DocumentRoot /var/www/wp
    DirectoryIndex index.php
    <Directory "/var/www/wp">
          Options -Indexes
          AllowOverride All
          Require all granted
    </Directory>
    ErrorLog ${APACHE_LOG_DIR}/error-wp.log
    LogLevel warn;
    CustomLog ${APACHE_LOG_DIR}/access.log combined
</VirtualHost>

---

Désactivation du site par défaut et activation de WordPress

sudo a2dissite 000-default.conf
sudo a2ensite wp.conf
sudo systemctl reload apache2.service

---

Configuration DNS (Bind9)

Ajout des enregistrements A et CNAME

sudo nano /var/cache/bind/db.californie.cub.sioplc.fr

@   IN  SOA ns0.californie.cub.sioplc.fr. admin.californie.cub.sioplc.fr. (
    2025111301  ; Serial
        1D
        1H
        1W
        3H )

californie.cub.sioplc.fr.  IN  NS  ns0.californie.cub.sioplc.fr.
californie.cub.sioplc.fr.  IN  NS  ns1.californie.cub.sioplc.fr.

ns0     IN  A   192.168.3.10
ns1     IN  A   192.168.3.11
www0    IN  A   192.36.3.20
www1    IN  A   192.36.3.21

scanner0 IN  CNAME  www0
scanner1 IN  CNAME  www1

Redémarrage du service DNS

sudo systemctl restart bind9

Vérification

dig scanner0.californie.cub.sioplc.fr

---

Installation de WordPress

Téléchargement

cd /tmp
wget https://wordpress.org/latest.zip

Création de la base de données

sudo mysql
CREATE DATABASE wp_www0_californie_cub;
CREATE USER 'etudiant'@'localhost' IDENTIFIED BY 'etudiant_007';
GRANT ALL PRIVILEGES ON wp_www0_californie_cub.* TO etudiant@localhost;
FLUSH PRIVILEGES;

Déploiement des fichiers

sudo unzip latest.zip -d /var/www/wp
cd /var/www/wp
sudo mv wordpress/* /var/www/wp/
sudo rm wordpress/ -Rf
sudo chown -R www-data:www-data /var/www/wp/

---

Installation Web – Interface WordPress

Accéder à :

http://192.36.3.21

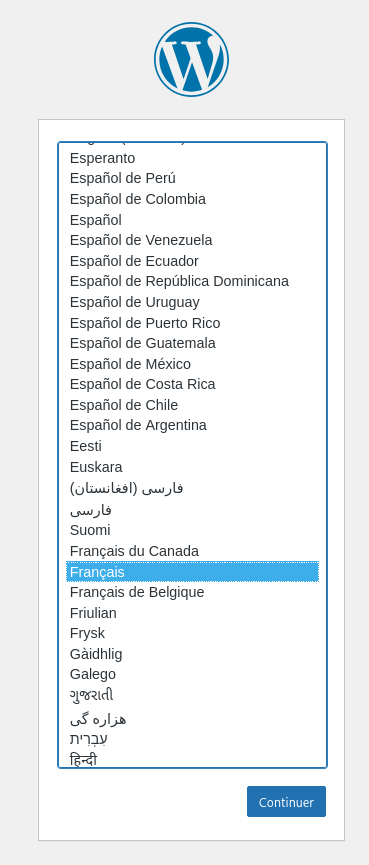

Choix de la langue

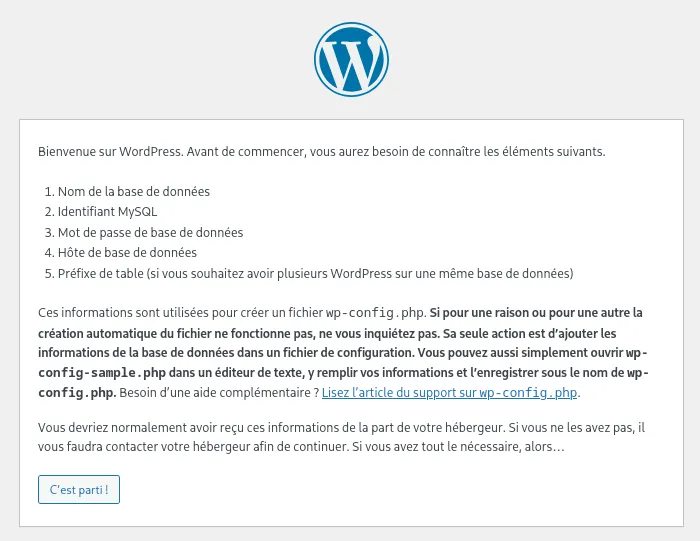

Pré-requis base de données

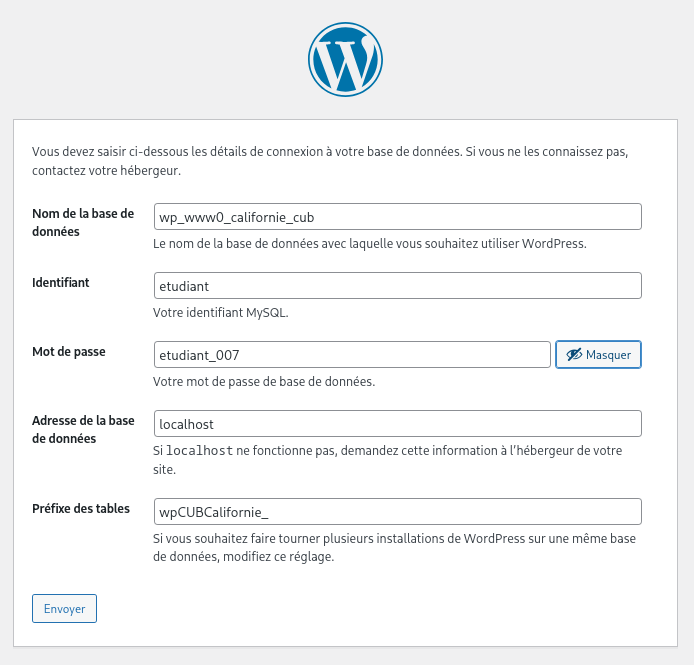

Informations de connexion BD

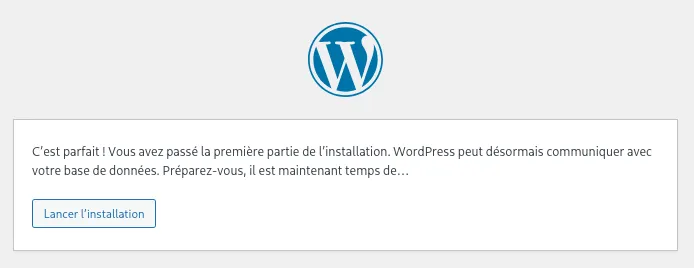

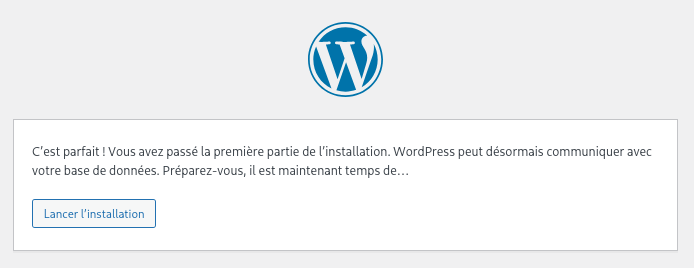

Confirmation de réussite

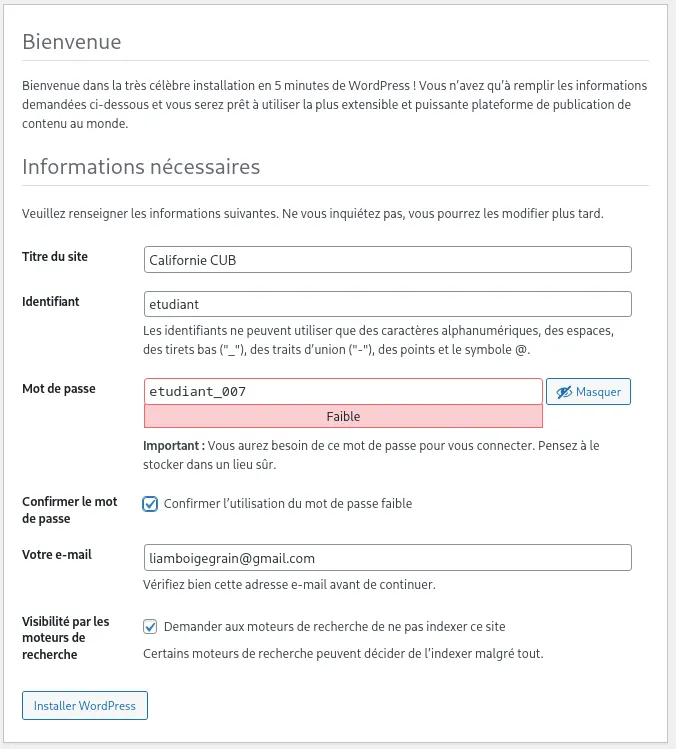

Création du compte administrateur

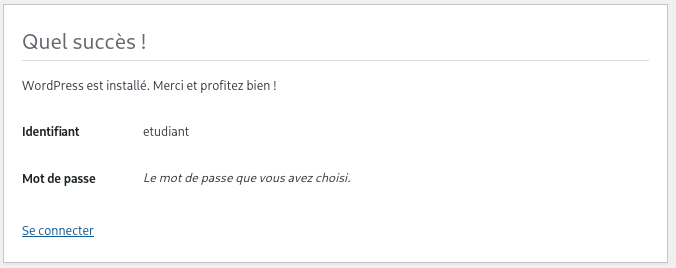

Confirmation installation

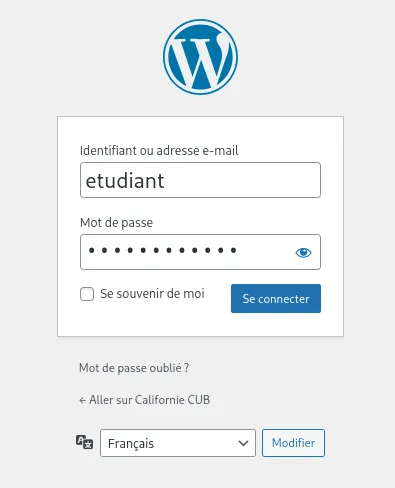

Connexion administration

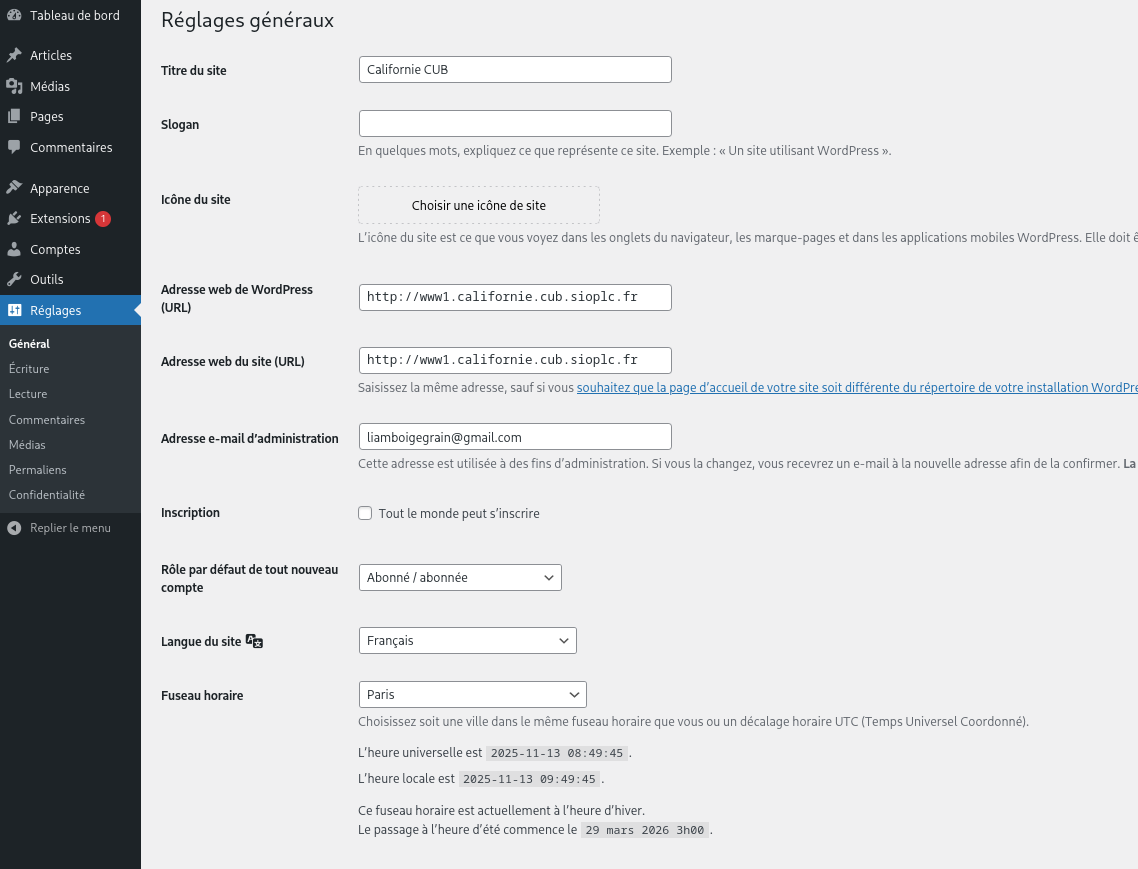

Mise à jour de l’URL du site

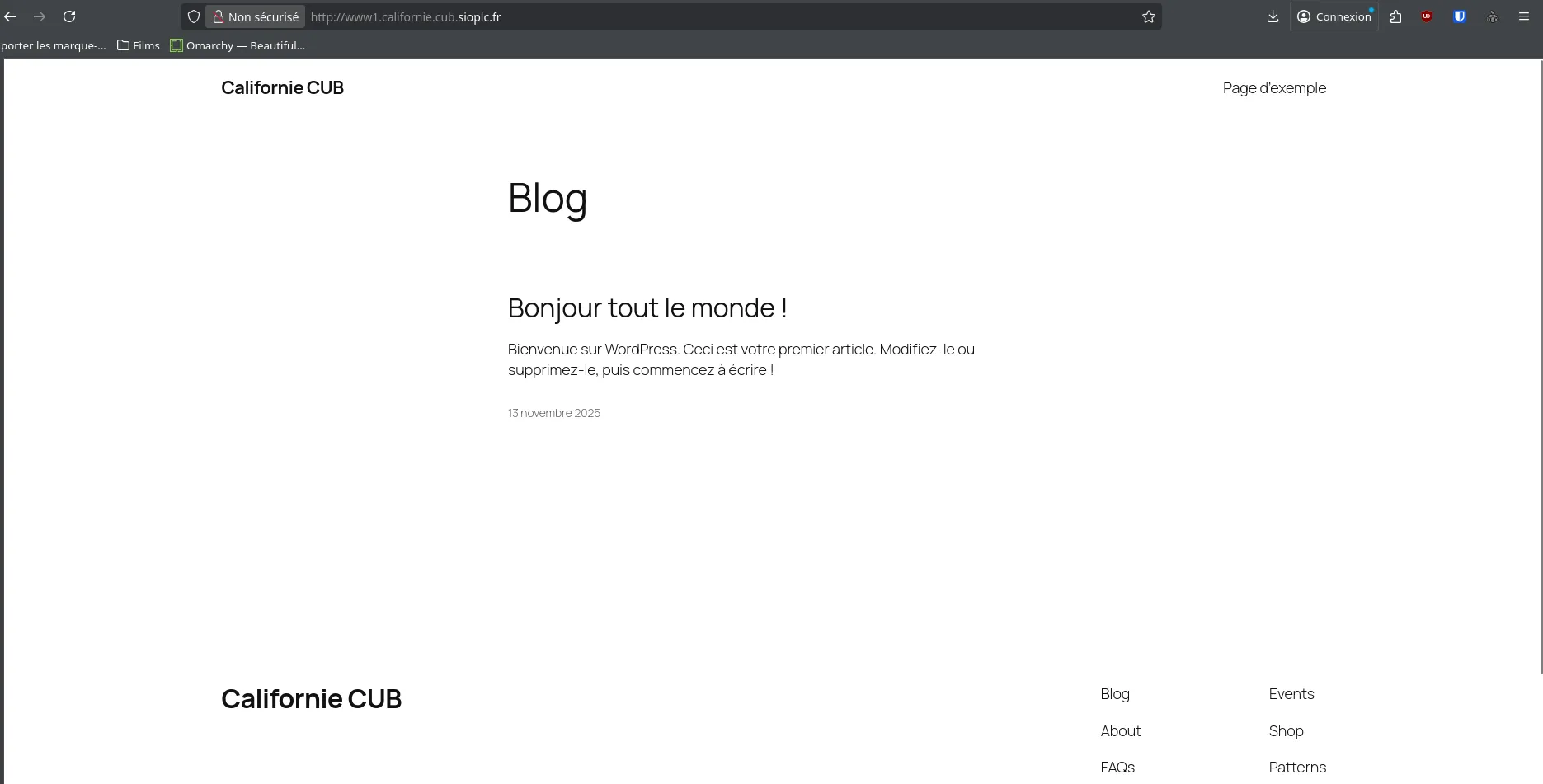

Site fonctionnel

---

Installation du Scanner Web

Récupération de l’application

cd /var/www/
sudo git clone https://github.com/kferrandonFulbert/command-attack.git

---

Configuration VirtualHost Scanner (HTTP)

sudo nano /etc/apache2/sites-available/scanner.conf

<VirtualHost *:80>
    ServerName scanner1.californie.cub.sioplc.fr
    DocumentRoot /var/www/command-attack
    DirectoryIndex index.php

    <Directory "/var/www/command-attack">
        Options -Indexes
        AllowOverride All

        <RequireAll>
            Require ip 192.168.3.192/28

            AuthType Basic
            AuthName "Zone protégée"
            AuthUserFile /etc/apache2/sites-available/scanner1.htpasswd
            Require valid-user
        </RequireAll>
    </Directory>

    ErrorLog ${APACHE_LOG_DIR}/error-wp.log
    LogLevel warn
    CustomLog ${APACHE_LOG_DIR}/access.log combined
</VirtualHost>

Création du fichier d’authentification

sudo htpasswd -b /etc/apache2/sites-available/scanner1.htpasswd etudiant "etudiant_007"

Activation

sudo a2ensite scanner.conf
sudo systemctl reload apache2.service

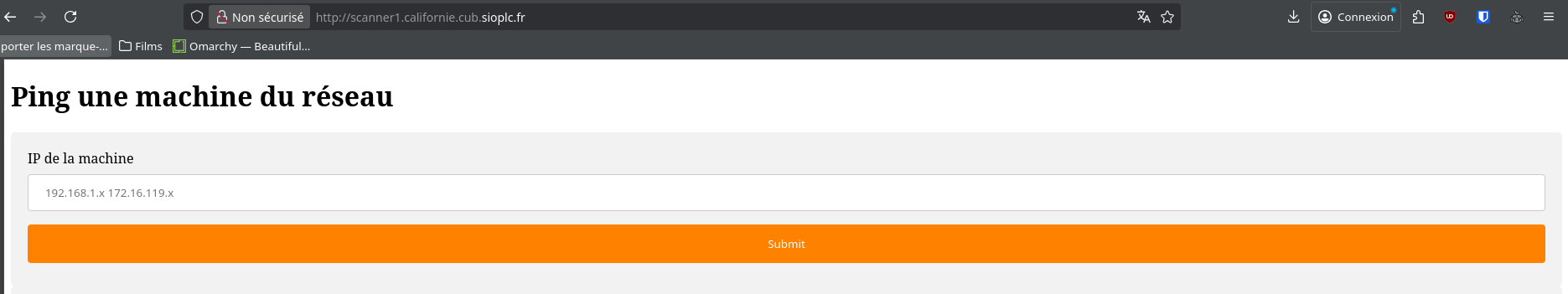

Site scanner fonctionnel

---

Activation SSL (HTTPS)

Activation du module SSL

sudo a2enmod ssl
sudo systemctl restart apache2

---

Création des certificats auto-signés

cd /etc/apache2/
sudo mkdir certs
cd certs/

Certificat WordPress

sudo openssl req -newkey rsa:4096 -keyout www1.key -x509 -days 365 -out www1.crt

Common Name :

www0.californie.cub.sioplc.fr

Certificat Scanner

sudo openssl req -newkey rsa:4096 -keyout scanner1.key -x509 -days 365 -out scanner1.crt

---

VirtualHost SSL – Scanner

sudo nano /etc/apache2/sites-available/scanner-ssl.conf

<VirtualHost *:443>
    ServerName scanner1.californie.cub.sioplc.fr
    DocumentRoot /var/www/command-attack
    DirectoryIndex index.php

    SSLEngine on
    SSLCertificateFile /etc/apache2/certs/scanner1.crt
    SSLCertificateKeyFile /etc/apache2/certs/scanner1.key

    <Directory "/var/www/command-attack">
        Options -Indexes
        AllowOverride All

        <RequireAll>
            Require ip 192.168.3.192/28
            AuthType Basic
            AuthName "Zone protégée"
            AuthUserFile /etc/apache2/sites-available/scanner1.htpasswd
            Require valid-user
        </RequireAll>
    </Directory>

    ErrorLog ${APACHE_LOG_DIR}/error-wp.log
    LogLevel warn
    CustomLog ${APACHE_LOG_DIR}/access.log combined
</VirtualHost>

---

VirtualHost SSL – WordPress

sudo nano /etc/apache2/sites-available/wp-ssl.conf

<VirtualHost  *:443>
    ServerName www1.californie.cub.sioplc.fr
    DocumentRoot /var/www/wp
    DirectoryIndex index.php

    SSLEngine on
    SSLCertificateFile /etc/apache2/certs/www1.crt
    SSLCertificateKeyFile /etc/apache2/certs/www1.key

    <Directory "/var/www/wp">
          Options -Indexes
          AllowOverride All
          Require all granted
    </Directory>

    ErrorLog ${APACHE_LOG_DIR}/error-wp.log
    LogLevel warn
    CustomLog ${APACHE_LOG_DIR}/access.log combined
</VirtualHost>

Redémarrage

sudo systemctl restart apache2

---

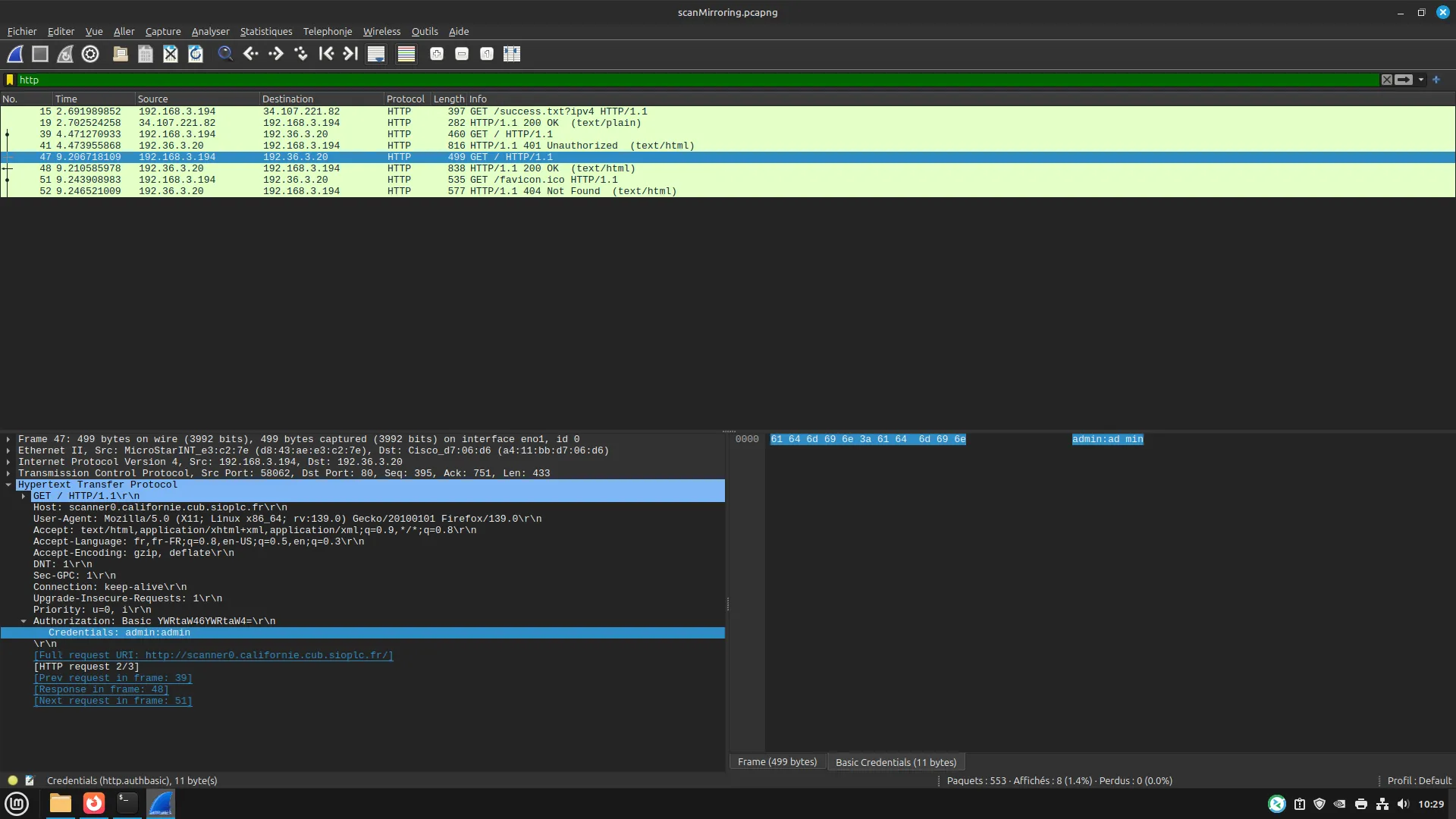

Supervision réseau – Écoute du port (SPAN)

Configuration sur le switch :

SwitchLv2CUB(config)#monitor session 1 source interface fa0/25 both
SwitchLv2CUB(config)#monitor session 1 destination interface fa0/23

---

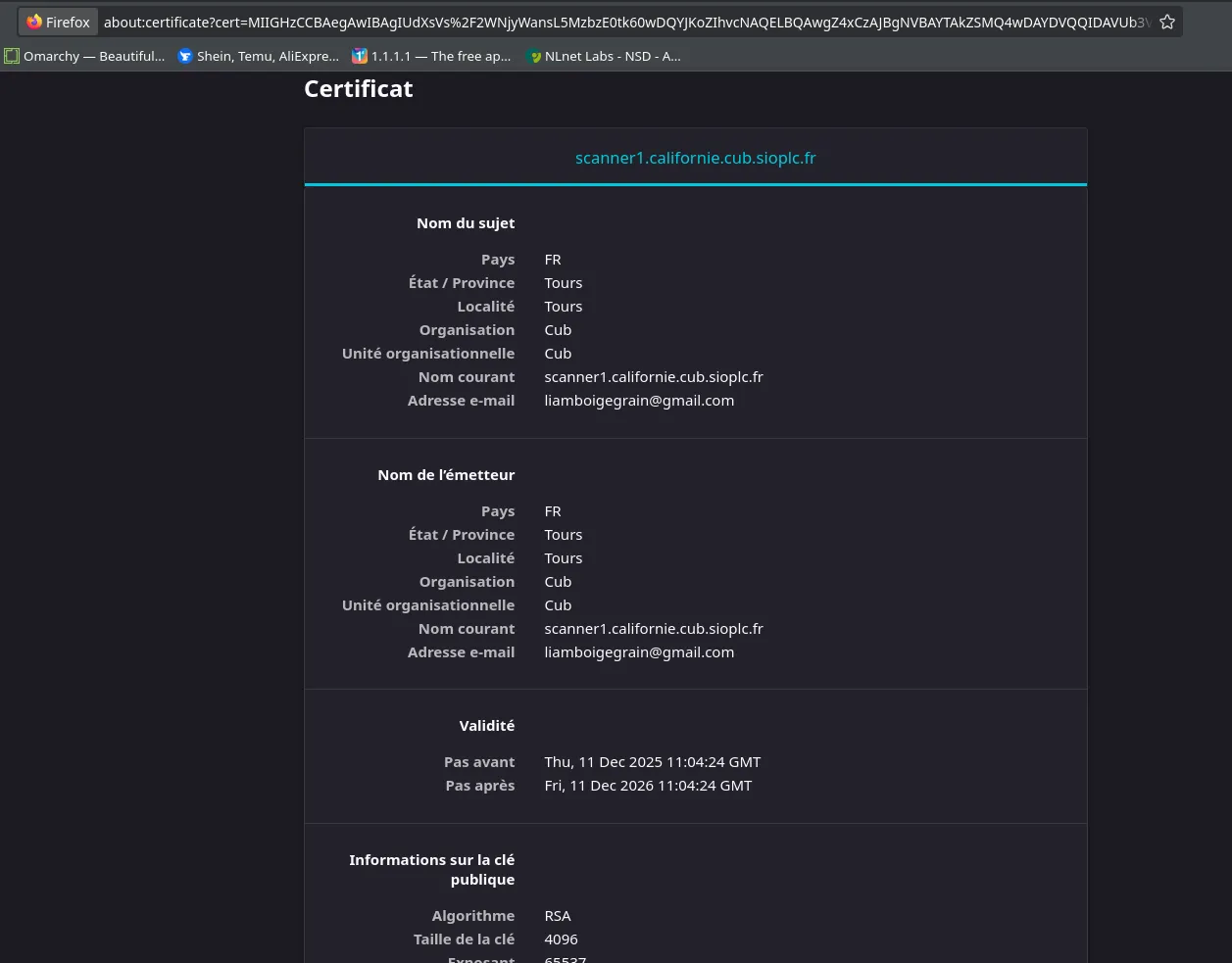

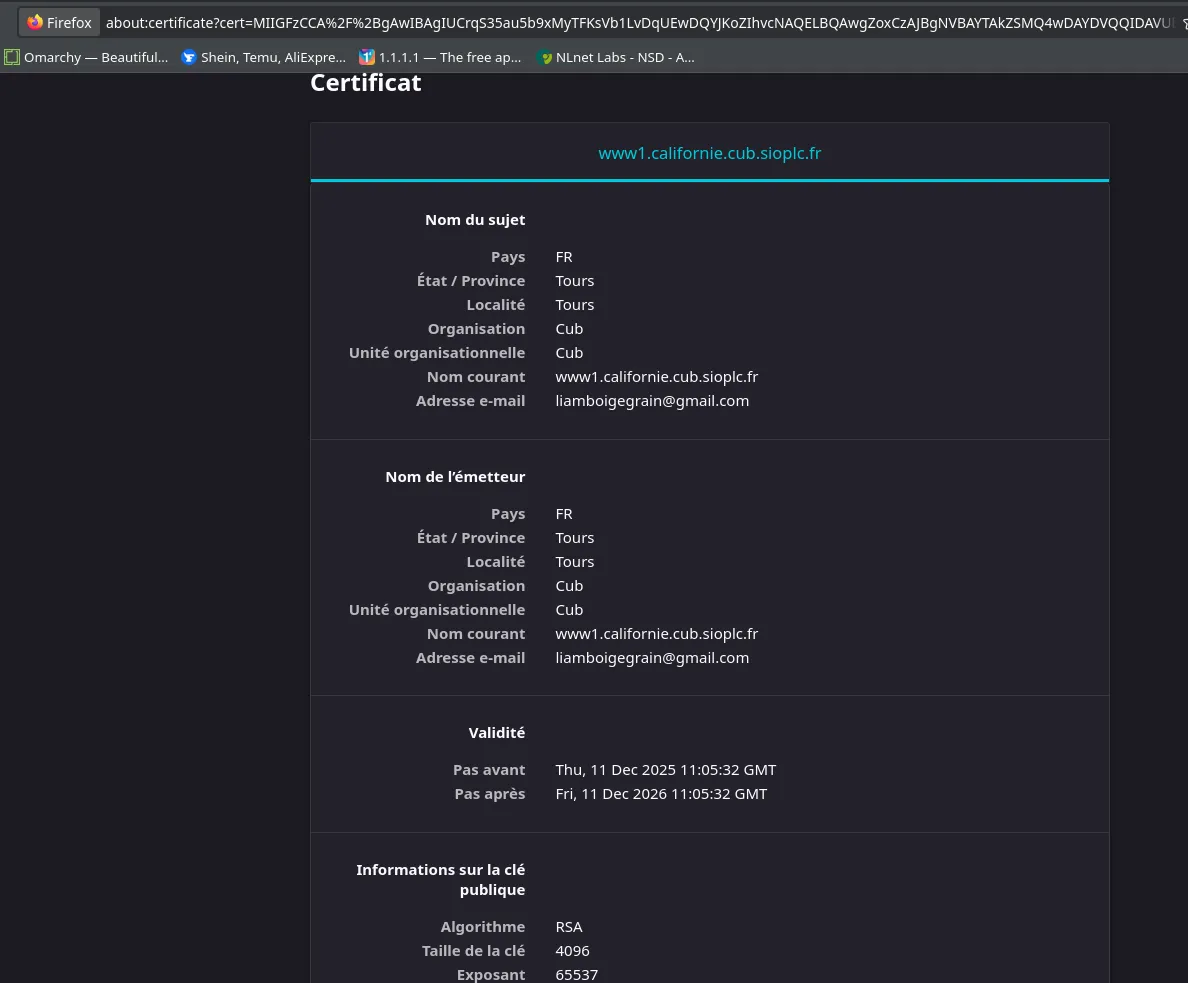

Vérification HTTPS

WordPress

Scanner
